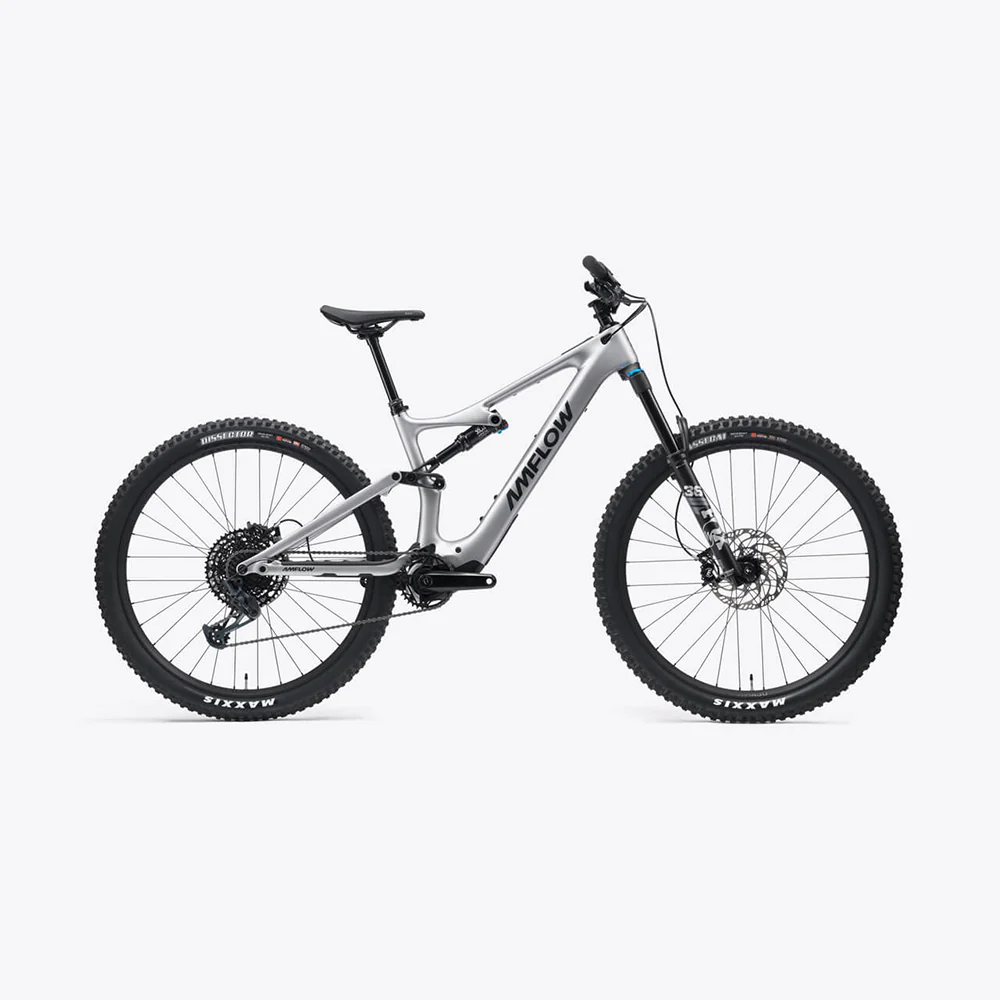

DJI Amflow PL Carbon (600Wh) – Mid-range Long Range

Power to the Summit

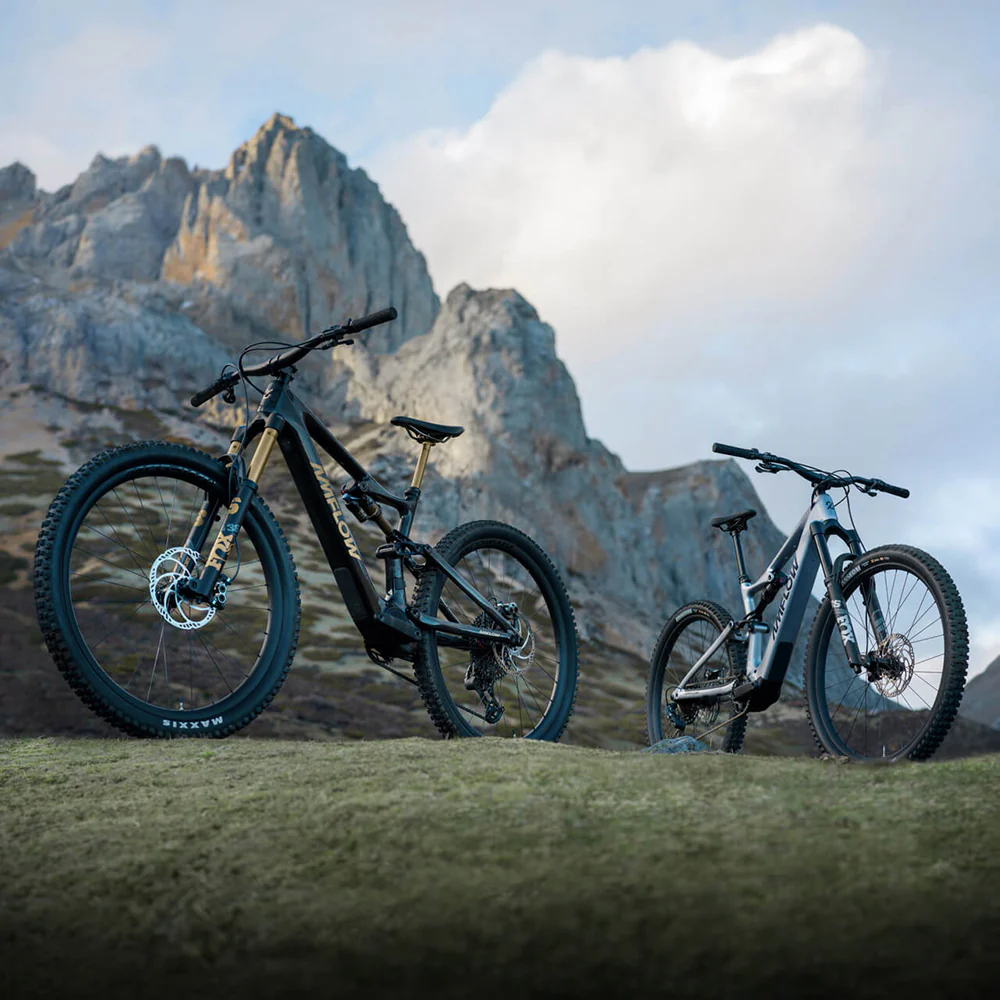

The AMFLOW PL electric mountain bike boasts a peak power of 850 watts in an ultra-lightweight design, weighing just 19.2 kg (600Wh version, Medium size). This revolutionary eMTB combines power, range, lightness, and smart features, making it perfect for trail enthusiasts. Designed for optimal performance, it offers a remarkable riding experience with its stunningly lightweight frame.

The AMFLOW PL features a carbon fiber frame weighing only 2.27 kg, delivering exceptional speed and maneuverability.

Dynamic Drive, Smooth Support

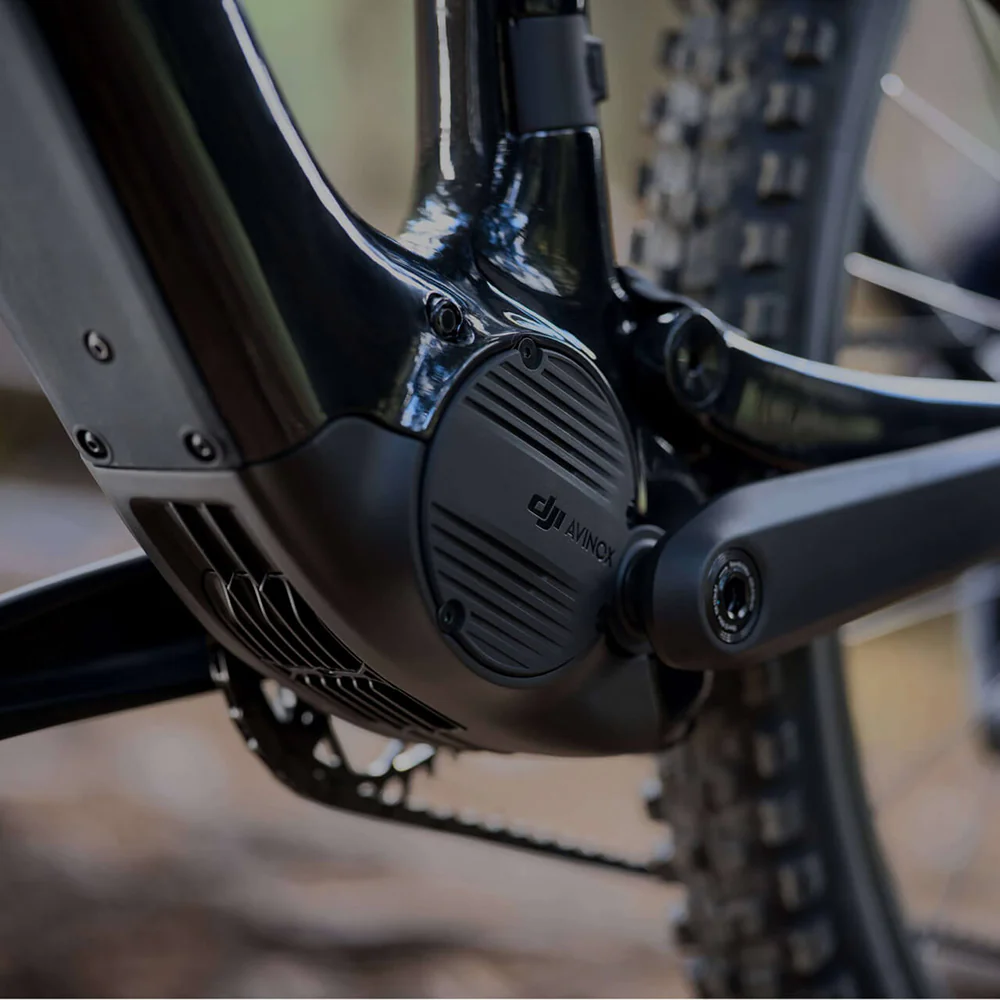

Engineered by DJI, the Avinox Drive System is seamlessly integrated into the AMFLOW PL, utilizing cutting-edge technology synonymous with DJI’s leadership in drones and stabilization systems. The Avinox Drive Unit incorporates a compound planetary gear set, offering an unparalleled power-to-size ratio.

Constructed from durable, high-strength polymer, the Drive Unit minimizes noise during high-speed operation. With integrated precision sensors and advanced DJI algorithms, it provides smooth and robust assistance across various conditions.

Five Modes for Tailored Assistance

In addition to Eco, Trail, and Turbo modes, the DJI Avinox Drive System features an Auto mode that adjusts support in real-time based on terrain and rider position. This mode allows users to navigate diverse landscapes without manual adjustments.

For steep climbs and challenging trails, activate Boost mode to gain instant 120 N·m of torque and 1000W of high-power assistance.

Intelligent Walk Assist for Easy Navigation

The AMFLOW PL includes Walk Mode with intelligent assistance for traversing inclines, Auto Hold to prevent rollback, and Hill Start Assist for added torque on slopes. It also allows for stationary gear shifting for a seamless experience.

High-Capacity Battery for Extended Range

The Avinox Drive System features a battery weighing just 2.87 kg, designed for ultra-high energy density, ensuring an extended range.

Smart Battery Management for Longevity

With a battery health management system, the AMFLOW PL monitors real-time status, self-discharge, voltage reduction, and alerts for abnormalities. After 500 full charge-discharge cycles, the battery retains 80% of its initial capacity.

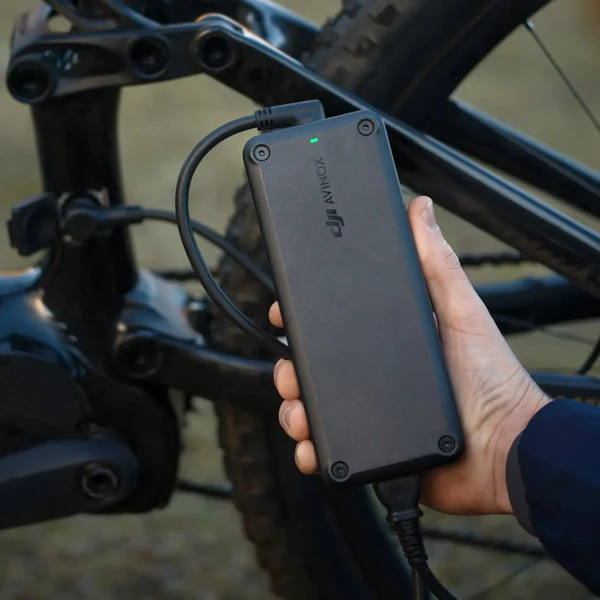

The compact fast charger can take the battery from 0% to 75% in just 1.5 hours.

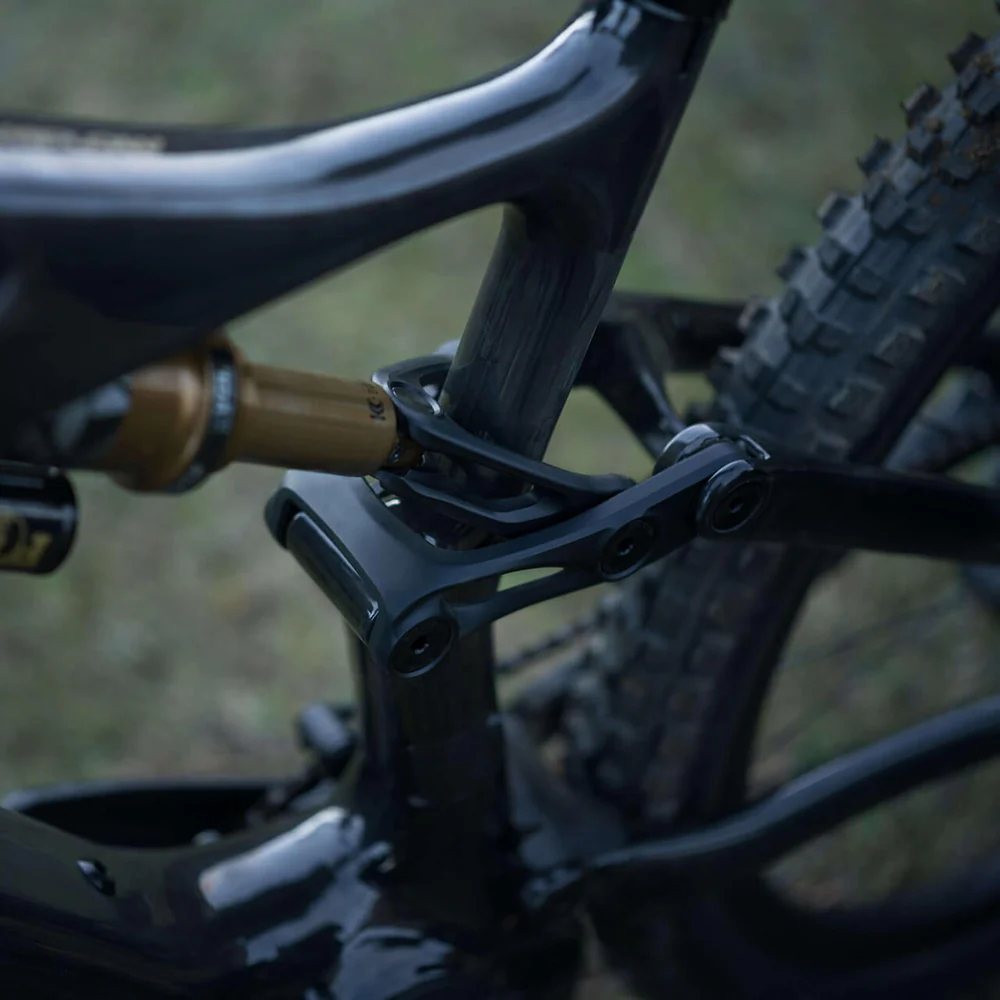

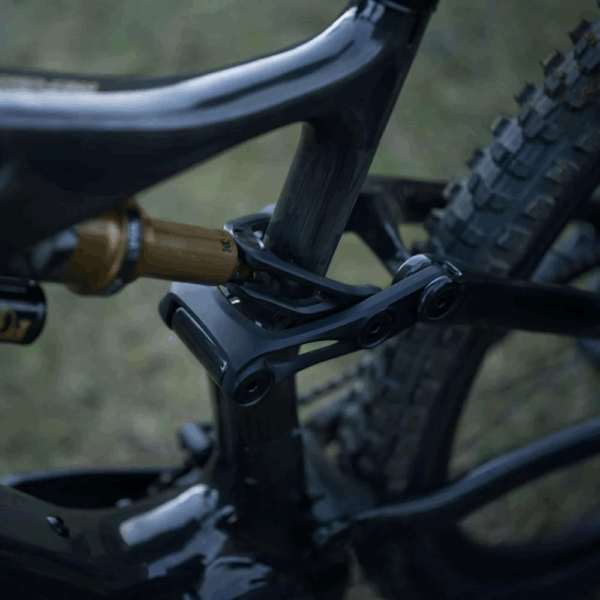

Advanced Four-Bar Linkage for Optimal Efficiency

The innovative four-bar linkage design of the AMFLOW PL significantly reduces pedal kickback, enhancing pedaling efficiency and ensuring that every stroke delivers results.

Superior Suspension System

Co-tuned with FOX, the rear shock provides a responsive initial stroke that filters out minor bumps and delivers powerful end-stroke support to prevent bottoming out during high-speed impacts or steep descents, allowing for an enjoyable off-road adventure.

Integrated Display with Smartphone Connectivity

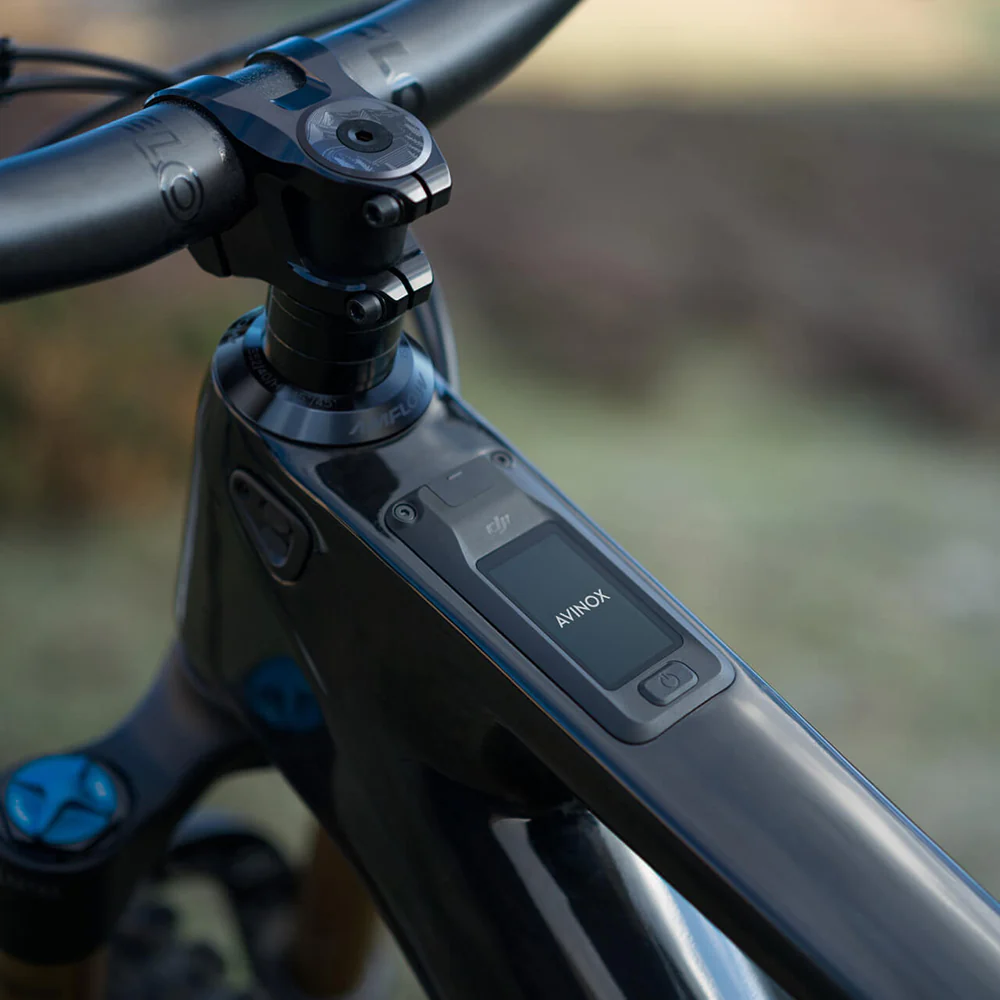

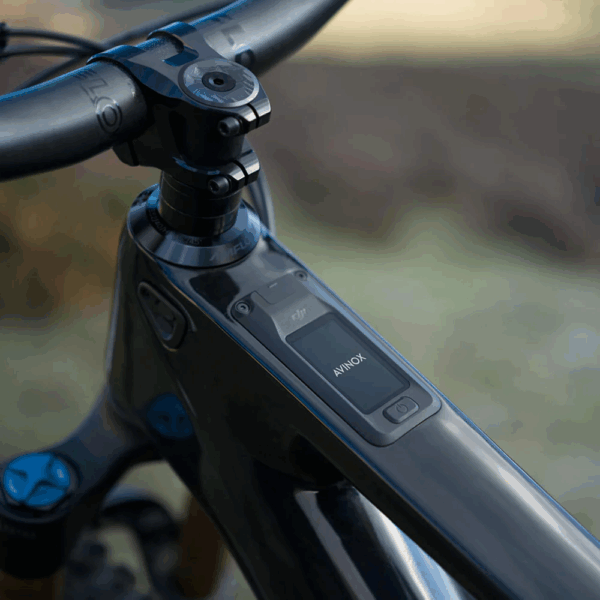

The heart of the DJI Avinox Drive System is the Control Display, a 2-inch full-color OLED touchscreen embedded in the frame. It presents real-time ride data, estimated range, and allows easy content adjustments with a simple swipe.

Enhanced Anti-Theft Features

Users can set multiple anti-theft configurations via the Avinox app, including password protection and movement alerts. If the bike is moved, an alarm activates, and users receive push notifications, enabling them to monitor the bike’s location and status. The Phone Key feature allows for automatic unlocking based on proximity.

Dual Wireless Controllers for Easy Access

The Bluetooth-enabled Wireless Controllers connect to the Control Display, facilitating effortless mode changes while riding.

Comprehensive Data Tracking and Easy Sharing

With the Control Display or Avinox app, riders can access a wealth of metrics including speed, range, cadence, power, torque, gradient, altitude, calories burned, ride duration, heart rate, and more. This information can be effortlessly synced with Strava.

Frame

• Type: Amflow PL Carbon Frame
• Color: Satin Silver
• Rear Travel: 150mm
• Compatibility: 27.5″ and 29″ Wheels

Drive Unit

• Model: Avinox M1 Drive Unit
• Torque: 105 N·m

Display

• Type: Avinox Control Display
• Screen Size: 2-inch OLED

Battery

• Type: Avinox Integrated Battery
• Capacity: 600Wh

Controllers

• Type: Avinox Wireless Controllers
• Position: Right and Left Sides

Charger

• Type: Avinox Fast Charger
• Output: 12A / 508W

Rear Shock

• Model: FOX Float Performance Trunnion
• Size: 185×55mm
• Features: Custom Tune, EVOL Air Sleeve, 2-Position Lever

Fork

• Model: FOX 36 Performance
• Travel: 160mm
• Damper: GRIP
• Axle Size: 15×110mm
• Rake: 44mm

Rear Derailleur

• Type: SRAM GX Eagle
• Speed: 12-Speed

Chainring

• Model: SRAM Eagle Transmission E-MTB Chainring
• BCD: 104
• Teeth: 34T

Shift Levers

• Type: SRAM GX Eagle Trigger Shifter
• Action: Single Click

Cassette

• Model: SRAM PG-1230
• Range: 11-50T

Chain

• Type: SRAM NX Eagle

Crankset

• Model: DJI Avinox SL Crank
• Length: M/L: 155mm; XL/XXL: 160mm

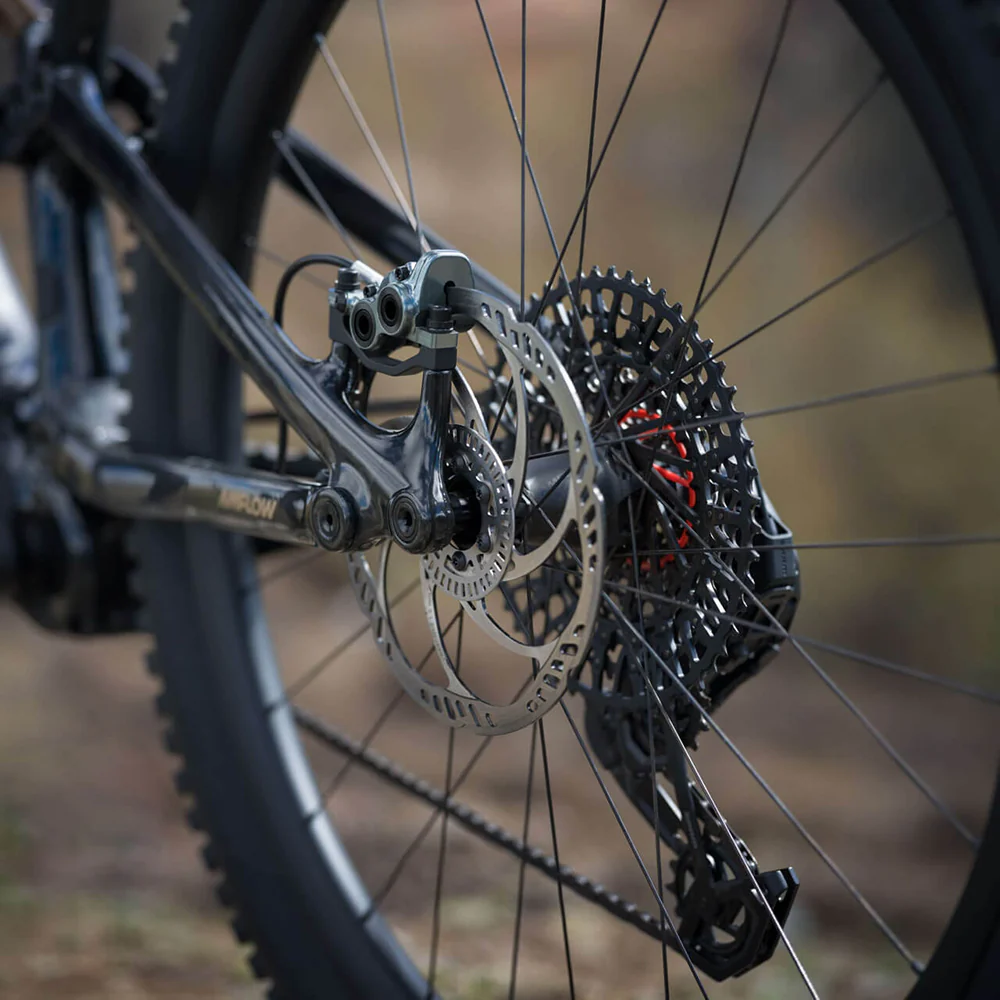

Brakes

• Type: Magura MT5 Hydraulic Disc Brake
• Lever: HC
• Caliper: 4-Piston with Shiftmix 3
• Rotor Size: 203mm MDR-C (Front & Rear)

Wheels

• Model: Amflow HMA-30

Rims

• Material: Alloy
• Size: 29″
• Width: 30mm Internal
• Holes: 32H
• Tubeless Ready: Yes

Spokes

• Type: SAPIM E-Light J-bend

Front Hub

• Material: Alloy
• Bearings: 2 Sealed Cartridge
• Axle Size: 15×110mm Thru-Axle
• Holes: 32H
• Bolt Type: 6-Bolt

Rear Hub

• Material: Alloy
• Bearings: 4 Sealed Cartridge
• Axle Size: 148×12mm Thru-Axle
• Holes: 32H
• Bolt Type: 6-Bolt
• Teeth: 21T

Front Tyres

• Model: Maxxis Assegai MaxxTerra
• Size: 29×2.5″ WT
• Features: 3C EXO E-25 TLR

Rear Tyres

• Model: Maxxis Dissector MaxxTerra
• Size: 29×2.4″ WT
• Features: 3C EXO+ E-25 TLR

Handlebar

• Type: Amflow Enduro Alloy Handlebar
• Rise: 35mm
• Width: 800mm
• Upsweep: 5-Degree
• Backsweep: 9-Degree

Grips

• Type: Amflow Enduro Grips

Stem

• Type: Amflow Enduro Stem
• Construction: One-Piece CNC
• Length: 35mm
• Clamping Diameter: 35mm

Saddle

• Model: Selle Royal SRX Plus

Seatpost

• Model: KS Rage-i
• Length Options: M: 150mm | L: 170mm | XL/XXL: 190mm

Accessories

• Included: Quick Start Guide | Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25) | Shock Pump | Front and Rear Lights
